Description

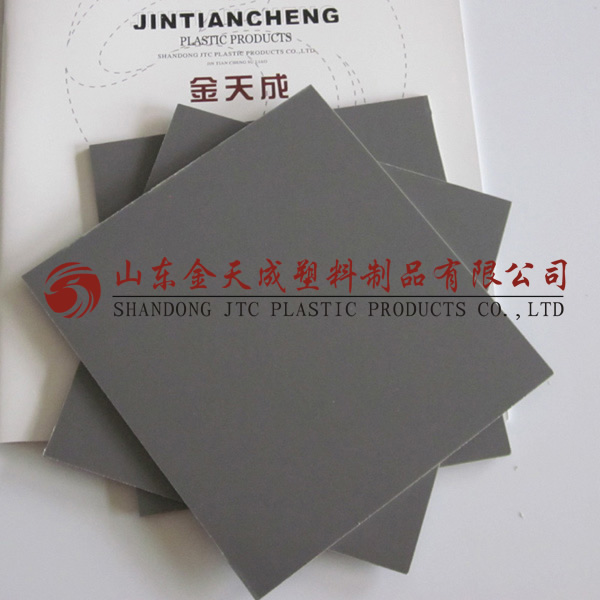

Rigid CPVC sheet(extruded plastic board)
material: Chlorinated polyvinyl chloride sheet

Size

Length

大象彩网According to the customers’ request

Width

1-1.5m

Thickness

1-50mm

大象彩网1000*2000mm

1300*2000mm

1220*2440mm

We can produce other special sizes according to the customers’ request.

Colours

Grey

characteristics

1,high temperature resistant
2,good electrical insulation
3,good chemical resistant
4,fire resistant

Remarks

Tensile Strength

大象彩网Vertical: 51.0 MPa

大象彩网Level：49.7 MPa

Impact strength

大象彩网Side: 63.9 KJ/㎡

Flat: 5.6 KJ/㎡

大象彩网durable temperature: 90-110℃

Changing rate when heated:

大象彩网Vertical: -1.1%

Horizontal: -0.8%

Application

chemical processing tanks, valves, fittings & piping systems,engineering
